Sony HVL-F60RM

With this flash

Sony HVL-F60RM

which replace the HVL-F60M, you will benefit of some evolutions really important, for always superbe results !

This flash retains all the qualities of its predecessor, as its video light function, while adding a convenient remote control function / radio receiver !

---

We can read here or there

High-output, high-speed flash with quick operation

The HVL-F60RM clip-on flash unit features high GN60 power (200 mm at ISO 100 in meters), high-speed continuous shooting support and fast operation; ideal for advanced to professional users. Wireless radio commander/receiver functionality is included.

GN60 power and continuous shooting support The high GN60 (200 mm at ISO 100 in meters) output and 220 times (When using Ni-MH batteries) continuous emission of this flash unit provide plenty of power for various shooting.
	Charge cycle time is 1.7 seconds (idem), or just 0.6 seconds(idem) with the External Battery Adaptor (FA-EBA1) (optional) for continuous shooting. Proper flash synchronization is maintained during continuous shooting, minimizing flash misfires and ruined shots..

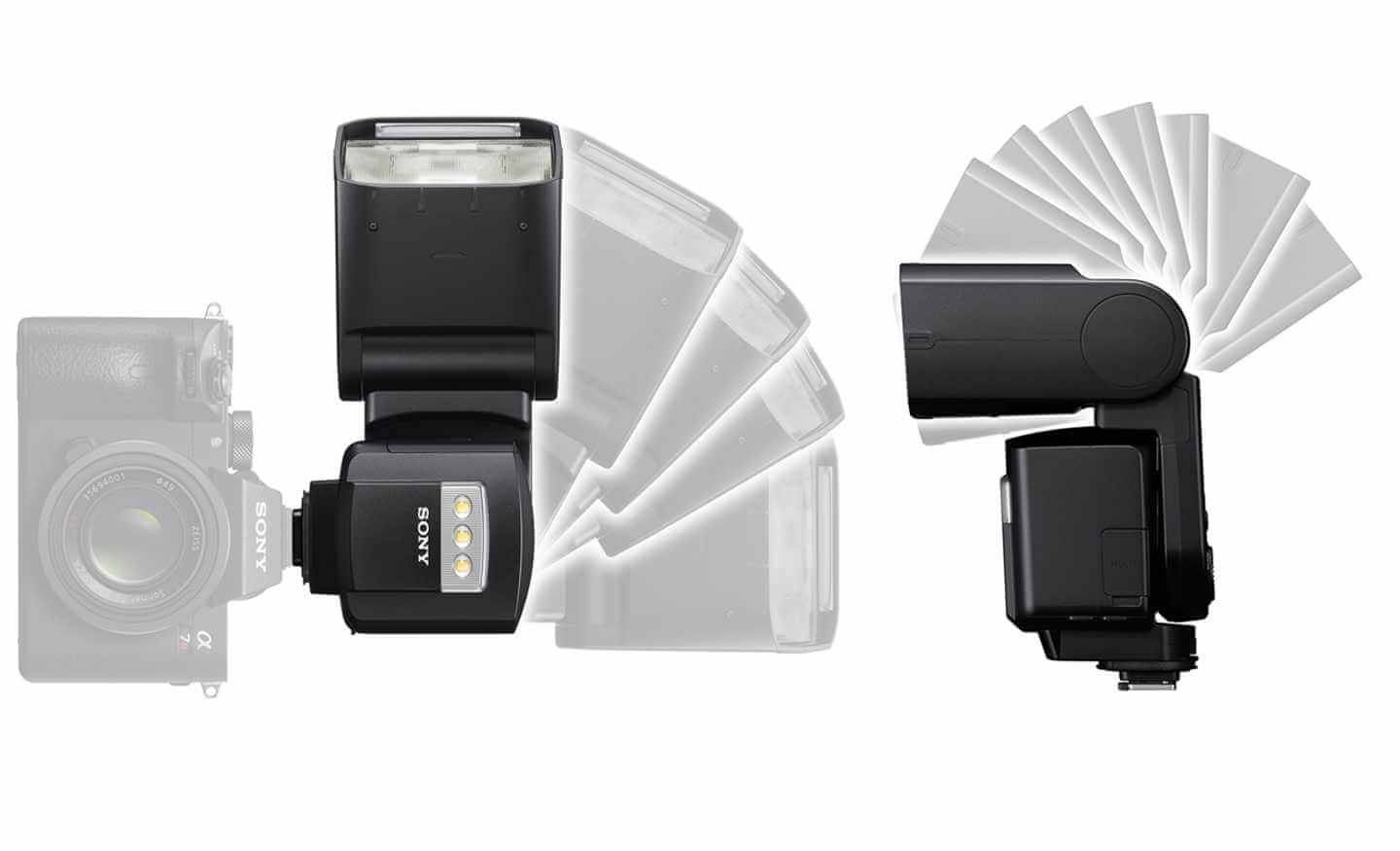

Quick Shift Bounce and direct light output level button for smoother operation
Quick Shift Bounce allows use of the lighting features from horizontal to vertical Quick Shift Bounce is Sony's original flash-head rotating mechanism, with the main unit tiltable from horizontal to vertical, allowing fast flash position changes. (90 ° left and right, 150 ° up/8 ° down)

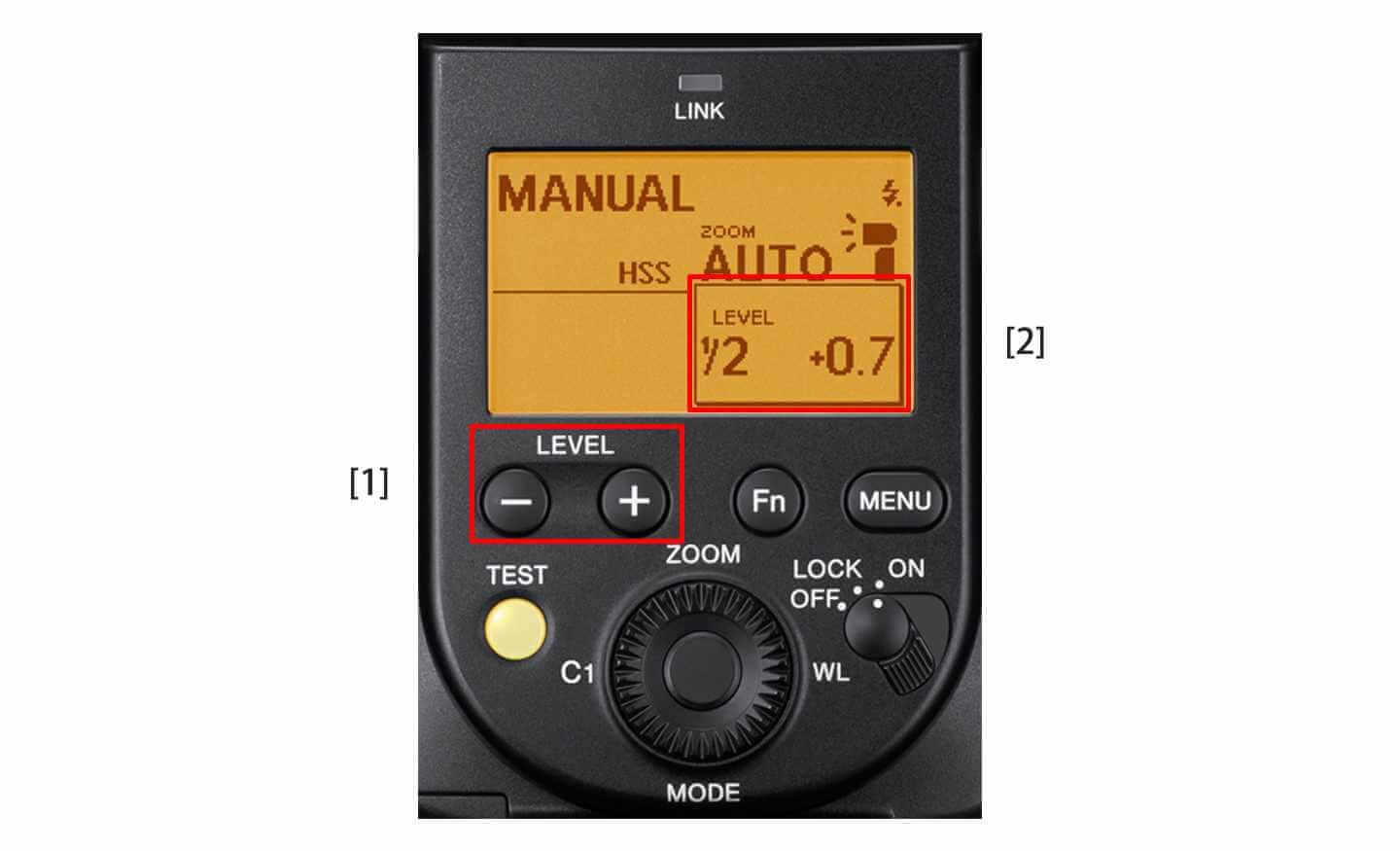

	Direct output adjustment An independent light output level button (LEVEL -/+ button) allows direct control of output or compensation for efficient workflow. Paired wireless flashes can also be easily adjusted via a LCD panel.
Reliable multi-flash radio control In addition to optical remote triggering, wireless radio triggering is supported. Wireless radio communication works reliably at distances of up to 98.43 feet5 and even around obstacles or in bright conditions. A total of 15 flash units can be assigned to up to 5 groups (In the group flash mode. Up to 3 groups in the TTL or manual flash mode).
Stable wireless radio communication Conventional optical triggering and wireless radio triggering cover a wide range of situations. A HVL-F60RM mounted on a compatible camera can be paired with off-camera units to provide reliable communication over long distances in conditions that would make optical communication difficult. Slow sync, rear-curtain sync and multi flash are supported (Available with compatible devices only. For compatibility information visit Sony's camera support page at: http://www.sony.net/flash/f60rm).

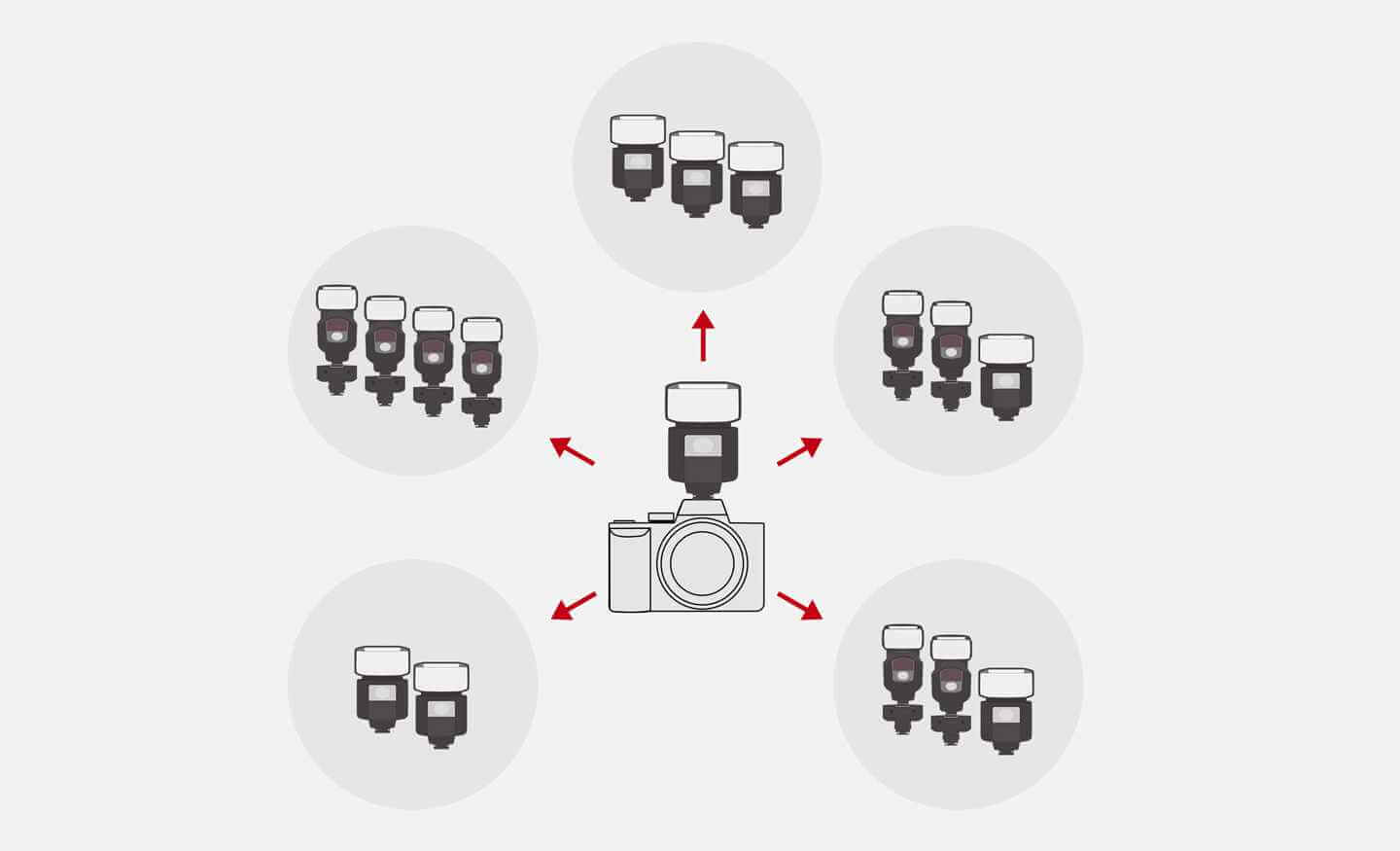

	Multi-flash radio control Up to 15 flash units can be assigned to up to 5 groups6 for wireless flash control at distances of up to 98.43 feet.5 Optional Wireless Radio Commander (FA-WRC1M) and Wireless Radio Receiver (FA-WRR1) units allow the HVL-F60RM to be used with Sony flash units that do not have built-in radio wireless capability, as well as the radio-capable HVL-F45RM.

---

Common features for uncommon lighting techniques

Control the ideal combination of shutter speed and flash intensity.

P-TTL flash control

Appropriate flash output is determined by using pre-flash to measure exposure.

LED light and AF assist

Not only for the studio, but also for outdoor shooting, a built-in LED light is very useful. It also functions as an AF assist light to ensure accurate autofocus operation in dim lighting. The LED can make manual focus easier in dark situations too.

Color filters

The supplied color filters can be used to match or complement existing lighting, in order to achieve natural white balance, or to create a specific atmosphere.

---

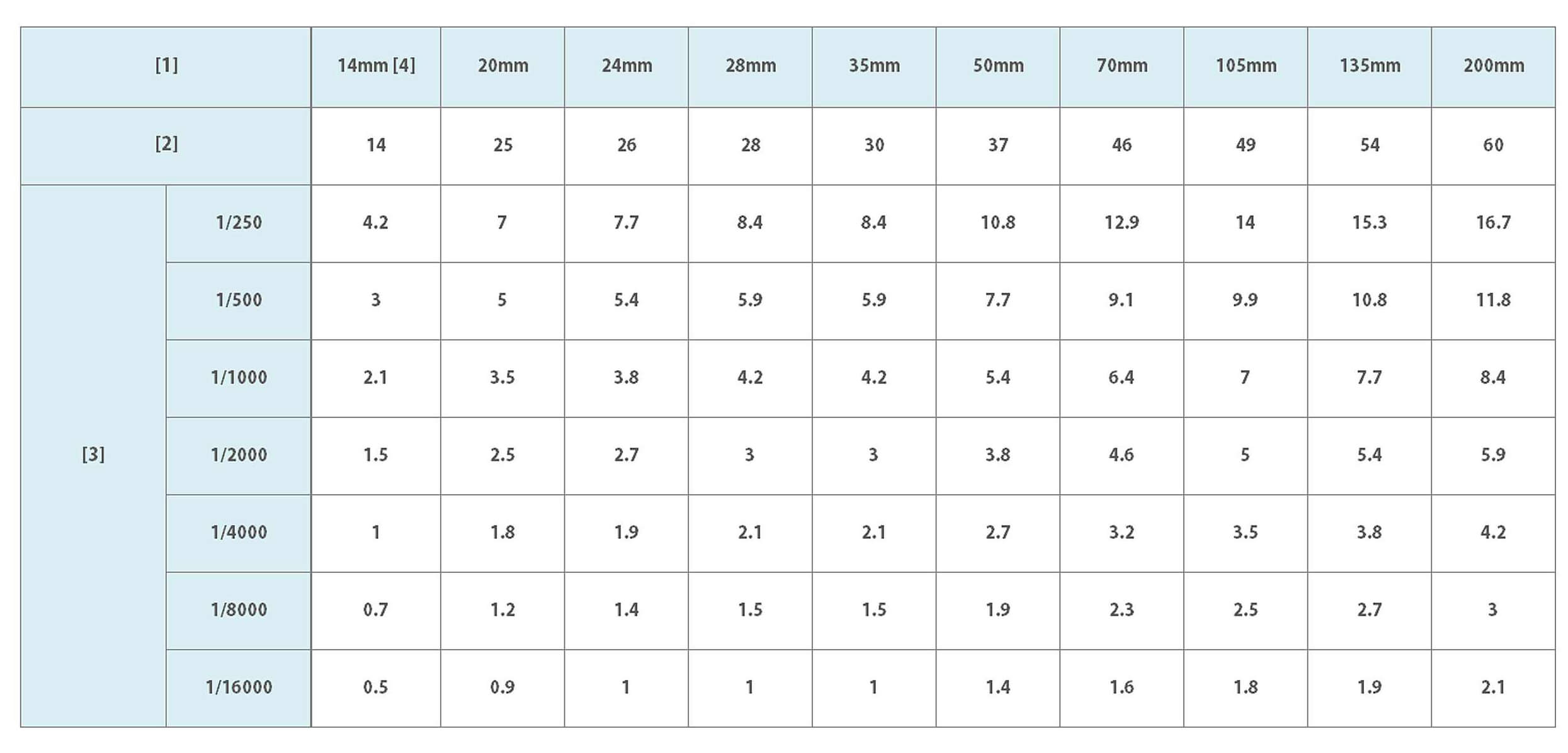

Guide Number (200 mm at ISO 100 in meters /STD flash distribution)

Guide number changes according to zoom position. See the table below.

[1] Flash coverage setting (35 mm format)
[2] Normal flash (1/1 power level)
[3] High-speed Sync (HSS) (shutter speed: sec.)
[4] When the wide panel is attached

---

Specifications

Basic information

• Dimensions (approx.) : W 3 1/8 inches × 5 1/2 inches × 4 1/8 inches (78.1 mm X H 139.5 mm X D 104.6 mm)
• Weight (approx.) : 15.9 oz (449 g) (only main unit)

Type

• Type : Auto electronic flash (clip-on type) with pre-flash metering
• Shoe type : Multi Interface Shoe.

Flash head (light-emitting unit)

• Maximum guide number : 60 (Flash coverage setting 200 mm/STD flash distribution, ISO100・m)
• Flash coverage : AUTO/MANUAL (20 mm–200 mm) angle of view at 14 mm focal length is also covered with the wide panel
• Flash mode : TTL/MANUAL/MULTI
• Flash Duration (Approx.) : Within 2.8 ms (1/1 MANUAL)
• Color Temperature (Approx.) : 5,500K
• Frequency (Approx.) : 0.1–2.5 seconds (alkaline battery)/0.1–1.7 seconds (Ni-MH battery)
• Repetition (approx.) : More than 150 times (alkaline battery)/More than 220 times (Ni-MH battery)
• Continuous flash performance : 40 flashes at 10 flashes per second
• Bounce flash : Yes
• Bounce angle : Up 150 deg (0 deg/30 deg/45 deg/60 deg/75 deg/90 deg/120 deg/150 deg), down 8 deg, left and right 90 deg (0 deg/30 deg/45 deg/60 deg/90 deg)
• Test flash : Yes
• Flash control : Flash control using pre-flash (P-TTL/ADI)
• Flash compensation : Yes
• Power level switching : 25 levels (1/1-1/256) 1/3 steps
• High-speed sync (HSS) : Yes
• Modeling flash : Yes
• Built-in wide panel : Yes (14 mm)
• Built-in bounce sheet : Yes

AF illuminator

• AF illuminator : Yes
• Operating Range (Approx.) : 1.64–9.84 ft [[F_DN0028]]/1.64–32.81 ft

Radio-controlled wireless function

• Radio Control Wireless Function : Yes (commander/receiver)
• Frequencies : 2.4 GHz band
• Channels : 14 channels (Auto/Manual)
• Communication Distance (Approx.) : 98.43 ft
• Groups : 3 groups (TTL/MANUAL), 5 groups (group flash photography)
• Maximum flash units : 15 units
• Lighting ratio control :3 groups (TTL)

Optical control wireless function

• Optical Controlled Wireless Flash : Yes (controller/remote)
• Channels : 4 Channels
• Communication Distance (Approx.) :16.4ft
• Groups : 3 groups
• Lighting ratio control : 3 groups (TTL)

LED light function

• Center Luminance Intensity (Approx.) : 1,200 lx (1.64 ft)/300 lx (3.28 ft)
• Lighting Distance (Approx.) : 6.56 ft (when recording movies, set to ISO 3200 & F5.6)
• Focal length supported : 35mm (35 mm-format angle of view)
• Continuous Lighting Time (Approx.) : 1 hour (with Sony AA-size alkaline battery)
• Color Temperature (Approx.) : 5,500 K
• Power level switching : 15 steps

Other functions

• Auto zoom control optimized for image sensor size : Yes
• Flash distribution setting : Yes
• Auto WB Adjustment : Yes
• Custom key settings : Yes
• Memory settings : Yes
• Remote release : Yes

Display

• LCD panel : Yes (Dot matrix)

External connectors

• Sync terminal : Yes (IN/OUT)
• Multi/Micro USB terminal : Yes

Power source

• Power source : Four AA-size alkaline or Ni-MH batteries

Other features

• Dust and moisture-resistant design : Yes
