DM-Accessories BOT-FLAT

Need to fix an accessory (microphone, flash, light,...) with a standard accessory shoe on the 1/4"-20 threaded hole of any support ?

Or on the bottom of the camcorder or reflex body ?

With this simple adapter

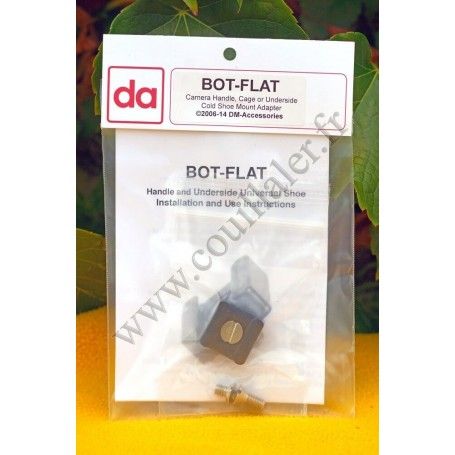

DM-ACCESSORIES BOT-FLAT

you will be able to realize this on any compatible material (1/4"-20 threaded hole).

Are included with this accessory shoe two screws of different lengths to increase compatiblity to more type of devices.

---

The weight of this accessory is around 14g, it will easily find its place in your favorite bag.

---

We can read here or there

This is a shoe mount screws into the tripod mount screw to allow the use of a mic or other shoe-mounted device. It will work with any flat surface with a 1/4"-20 threaded hole. A common use is to add a shoe mount to a camcorder with a threaded hole intended for mounting lights and accessory arms. Another use is to make it a camcorder bottom-mounted universal accessory shoe. Most camera cages include several of these holes.

Those desiring a metric thread should email first, such a request can be accommodated with a 6mm or 5mm thread screw.

For small tape-based camcorders, with careful alignment, BOT-FLAT doesn’t interfere with bottom-loading tape and door mechanisms on camcorders such as the HDR-HC1 and the Sony TRV series camcorders. This will not allow tape loading on narrow bottom loading camcorders such as HV10 and Optura camcorders.

This adapter is aluminum, powder coated satin black or silver color, depending on color ordered. It includes a dampening washer and stainless steel screws in two lengths. A manual flat head screwdriver is required for installation.

This product works with the handle of the Panasonic HPX170 and HPX500, Grass Valley Viper and any other cameras with a 1/4"-20 light mount shoe (1/4"-20 threaded hole) in the handle.

---

This adapter is only compatible with devices that have a universal shoe mount, and it does not pass along any electrical power or signal such as flash trigger, audio, etc..
