Wireless Microphone Rode Filmmaker Kit - Receiver, Transceiver and lavalier mic

A professional wireless microphone complete kit!!!

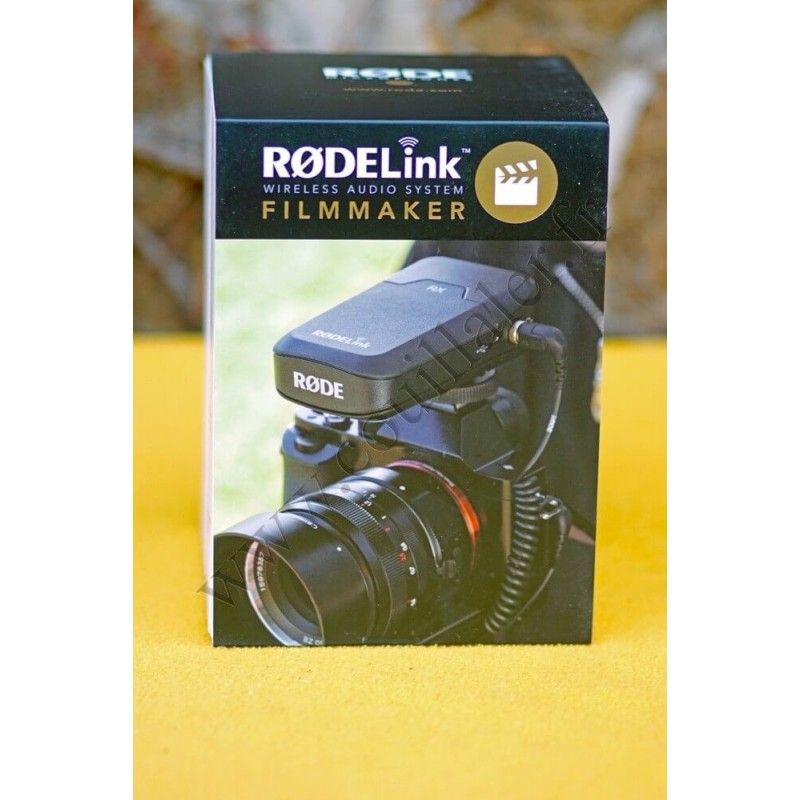

Røde FilmMaker Kit

Furnished with a RX-CAM receiver, the TRS cable to the camcorder 3.5mm microphone plug, the transmitter TX-BELT and the Røde Lavalier microphone!

Here it is, complete, you just have to film now!

And what sound! With a specialist like Røde, your interviews will have a really pro rendering!

You have now just to find the way to raise the spectator reflexion rather than keeping his brain sleeping, to inform rather than plunge him into the abyss of the usual disinformation, to wake him up rather than keeping him in television lethargy in which he delights so often to be.

In short, you now just need to do your job and follow your desires! ^_^

With good equipment, guaranteed by Le Petit Monde de Couillaler, and of course by Røde!

---

When you receive the Røde material, don't forget to register it on their website to extend the Røde warranty Rode!!!

http://www.rode.com/warranty/step1

---

We can read here or there

The RØDELink Filmmaker Kit provides everything you need to start filming with wireless audio, including a beltpack/camera-mount receiver, beltpack transmitter and broadcast-quality lavalier microphone

RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

• Series II, 2.4GHz digital transmission
• 128-bit encryption
• Up to 100 metres range
• OLED display (on receiver)
• One button pairing
• Three level gain control
• AA battery or USB powered
• Includes broadcast lavalier microphone

---

Specifications

• Transmission type : 2.4GHz Fixed Frequency Agile System
• System dynamic range : 112dB
• Range (distance) : Up To 100m
• Frequency range : 35Hz - 22kHz
• Maximum output level : 1v Rms (2.8v P-p)
• Max input signal level : 1v Rms (2.8v P-p)
• Max latency : 4ms

Receiver (RX-CAM)

• Power source : 2 X AA Battery Or MicroUSB
• Antenna : Internal
• Output connection : 3.5mm TRS Locking Jack Socket - Dual Mono
• Output impedance : 300Ω
• Dimensions : 111mm X 65mm X 52mm
• Weight : 190gm

Transmitter (TX-BELT)

• Power source : 2 X AA Battery Or MicroUSB
• Antenna : Internal
• Input connection : 3.5mm TRS Locking Jack Socket
• Input impedance : 10kΩ
• Dimensions : 111mm X 65mm X 40mm
• Weight : 190gm

Lavalier Microphone

• Acoustic Principle : Pressure Gradient
• Active Electronics : JFET impedance converter
• Capsule : 0.10"
• Address Type : End
• Frequency Range : 60Hz - 18kHz
• Output Impedance : 3000Ω
• Maximum SPL : 110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
• Maximum Output Level : 189.0mV
• Sensitivity : -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level (A-weighted) : 25dB-A
• Weight : 1.00gm
• Dimensions : 12.00mmH x 4.50mmW x 4.50mmD

---

In the box

• Receiver (1) (RX-CAM)
• Transmitter (1) (TX-BELT)
• Microphone Røde Lavalier (1)
• TRS Connexion Cable (1)
• Documentation
