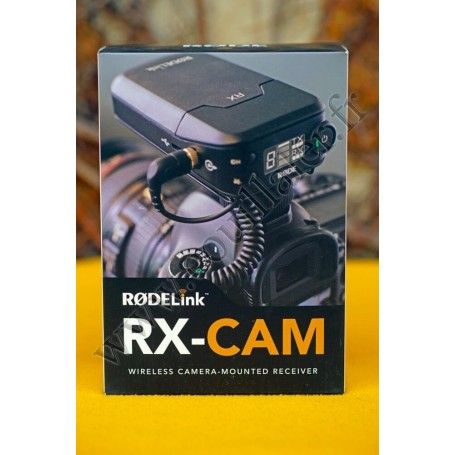

Rode RX-CAM - Wireless Receiver for microphone - RødeLink

The wireless receiver for external microphones

Røde RX-CAM

which compose the wireless RØDELink Røde Newsshooter Kit for handled microphones, or the wireless audio recording system for camera or camcorders Røde Filmmaker Kit

presents many interesting functions, the first one is that you will resolve any existing cable problem between the microphone handler and the recording source (camera, camcorder, smartphone, MP3 recorder...)!

Based on the RØDELink system, with its 8 separated channels, with this RX-CAM receiver, you will be able to group different transmitters, which means different microphones, in your audio sequence!

Transmitters can be different as the Røde TX-XLR or the Røde TX-BELT, and then, recording simultaneously (or not) handled or lavalier microphones!

---

But, what does RØDELink means exactly ?

RØDELink (https://www.rode.com/rodelink) represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 meters** (over 100 yards).

** range estimations based on optimal environment

UP TO 100 METRE RANGE**

RØDELink is so intuitive that it works straight out of the box, with no channel selection necessary. For users with multiple RØDELink devices the system offers eight discreet channels that can be set up in seconds.

Powerful & secure

Using a Series II 2.4GHz encrypted digital transmission that is sent on two channels simultaneously, RØDELink automatically selects the strongest signal and ensures your audio is as reliable and secure as a cabled connection.

---

On en parle ici et là

The RX-CAM is a camera-mounted wireless receiver for the RØDELink digital wireless system. It features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

The RX can be powered either by 2 x AA batteries or a suitable USB power source via the Micro USB connector.

The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount (ndcouillaler : adaptors exist for the Sony Active Interface Shoe (AIS) or for the Sony Multi-Interface Shoe (MIS)), 3/8" thread (ndcouillaler : here, adaptors to 5/8" exist too) or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

• Includes Transmitter (XLR adaptor) and Receiver (camera or beltpack mount)
• XLR (w/P48) input, 3.5mm input and headphone output on transmitter
• Series II 2.4GHz digital transmission
• 128-bit encrypted signal
• Up to 100m range*
• One touch pairing
• OLED digital display
• AA Battery or USB Power
• NP-F battery option on transmitter
• Designed and made in Australia

---​

Caractéristiques techniques

• Transmission type : 2.4GHz axed frequency agile system
• System dynamic range : 112dB
• Frequency range : 35Hz - 22kHz
• Range (distance) : 100m*
• Maximum output level : 1v rms (2.8v p-p)
• Max input signal level : 1v rms (2.8v p-p)
• Max latency : 4ms
• Power source : 2 x AA and USB Power
• Antenna Internal
• Output connection : 3.5mm TRS jack socket – dual mono with thread lock
• Input impedance : 300k ohms
• Dimensions : 111mm H x 65mm W x 52mm D
• Weight : 190g
